Details

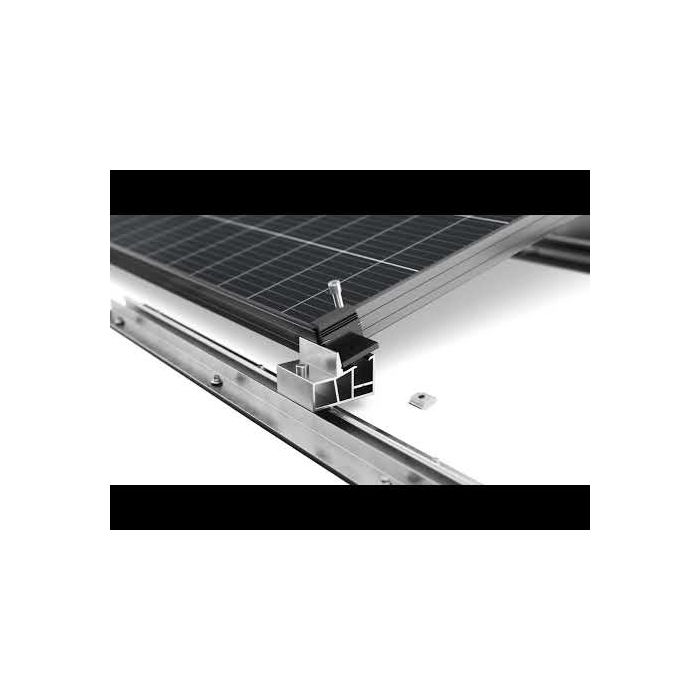

The Corab PI-068P system is a mounting structure designed for flat roofs, with PV modules installed at a tilt angle of 15°.
The structure is made of high-quality aluminium and steel with a ZM coating (wind deflector). All fastening components are made of stainless steel.
The system can be installed invasively using screws for trapezoidal sheet metal roofs.
Trapezoidal bridges are positioned along the long edge of the PV module.
It is equipped with an additional rubber insulation layer that protects the roof surface by preventing friction between aluminium components and the roof.
Key characteristics of the system include:
- simple design,
- very small number of system components,
- convenient packaging of components,
- use of high-quality materials.
The structure is made of high-quality aluminium and steel with a ZM coating (wind deflector). All fastening components are made of stainless steel.
The system can be installed invasively using screws for trapezoidal sheet metal roofs.
Trapezoidal bridges are positioned along the long edge of the PV module.
It is equipped with an additional rubber insulation layer that protects the roof surface by preventing friction between aluminium components and the roof.
Key characteristics of the system include:
- simple design,
- very small number of system components,
- convenient packaging of components,
- use of high-quality materials.
More Information
| Weight | 0,00 kg |
|---|---|
| Products family | Alu |
| System Orientation | South |
| Structure Tilt Angle | 10/15 degrees |
| Permissible Roof Slope | 0-5 degrees |
| System Application | Residential / Small-scale installations |
GPSR information
The individually sold components of support structures (including, but not limited to, profiles, connectors, brackets, clamps, and other elements) constitute integral parts of systems designed for specific support structure applications and have been engineered exclusively for use within these systems.
These components are not intended for standalone use or for any other constructional, installation, or technical purposes beyond those specified by the manufacturer.
Any use that deviates from the intended purpose is carried out solely at the user's own risk and may result in safety hazards, loss of warranty, and the exclusion of any liability on the part of the manufacturer or seller for damages arising from such use.
Download files
Datasheets
Instructions
Show all
Hide
- II - System P-068 PL EN.pdf
- Part I Instructions for systems for flat, pitched and free-standing roofs.pdf
- Part III Instructions for systems for flat, pitched and free-standing roofs.pdf
